①Zero Angular Backlash 16mm TBI Ball Spline SLF016 Spline Shaft
The TBI SLF016 16mm spline shaft represents a significant advancement in precision motion control, engineered to completely eliminate angular backlash for applications requiring absolute rotational accuracy. This innovative component achieves flawless torque transmission through its meticulously designed ball spline system that maintains constant, positive contact between the precision-ground raceways and bearing elements. The zero-backlash performance ensures instantaneous response to directional changes without any lost motion, making it ideal for high-performance automation, advanced robotics, and precision machining applications where even microscopic play cannot be tolerated. TBI's proprietary manufacturing process creates perfectly matched components that work in complete harmony to deliver crisp, responsive motion while maintaining the shaft's load-bearing capacity. The precision-ground spline surfaces and optimized ball paths work together to maintain consistent contact pressure, removing the minimal clearance typically found in conventional spline systems. Designed for critical applications in semiconductor manufacturing, optical positioning systems, and high-end automation equipment, this spline shaft demonstrates how thoughtful engineering can overcome traditional mechanical limitations. The SLF016 series embodies TBI's commitment to precision motion technology, offering system designers a solution that combines the absolute rotational stability of a direct drive system with the smooth linear motion of a precision ball spline, creating new possibilities for applications where both flawless angular precision and reliable linear movement are essential requirements.
②Features of TBI Ball Splines
The design of TBI Ball spline is to utilize the friction through the contact of steel balls within in the
Spline Nut and the grooves on the Spline Shaft. With TBI MOTION's unique 40°angular contact design which enables the Ball spline delivers high sensitivity and extreme high load carrying capacity. The concept is optimal for the application involve with high speed, vibration, impacts of loading and precise positioning requirements. Also when the Ball spline is used to function as linear bushing, the Ball spline provides ten times loading capacity than the linear bush on the like model but with a compact profile. Namely, Durability and reliablility is the reason to choose TBI Ball spline in your application.
③Model Number of ball screw series
④SLF,SLT Spline Shaft Cross-Sectional Shape
⑤All type of TBI MOTION Ball Spline

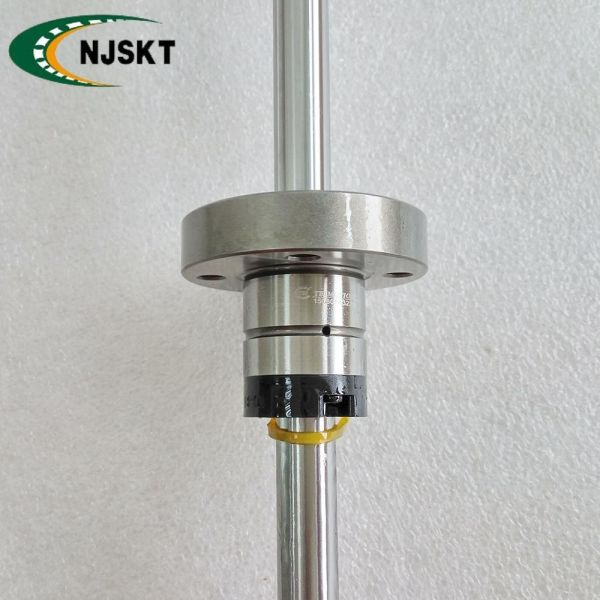

④Actual product photo
